ETA Visual Movement Guide

ETA Movement Guide: Top Four Most Popular Mechanical Calibers

Posted by Mike Johnson on in Articles

Share this Post

Introduction

With ETA serving such an important role in the global watchmaking community, people have rightly started to ask the question – what is the true identity of ETA? Evil Swatch-Owned Cartel or Cornerstone of the Luxury Watch Industry?

Representing the conglomeration of the majority of the world’s movement manufacturers going back to 1856, ETA has a virtual monopoly over the production and supply of “ébauches”, the modular and unbranded watch movements used by the vast majority of Swiss watchmakers.

For some, the existence of ETA movements enable the proliferation of soulless products – the assemblage of cheap and common components into something that can be marketed as “luxury” to the uninformed public.

For others, ETA movements have fueled the expansion of small “boutique” brands that can now offer high-quality and innovative watches at a fraction of the cost (see also: The Top 5 Most Innovative Boutique Watch Brands).

Like most things, the truth is somewhere in the middle. Most watchmakers will admit: ETA movements are well-built, accurate, and easy to maintain. And although they may be lacking in originality, they enable smaller players to deliver high-quality watches without the capital requirements normally associated with manufacturing movements in-house.

Even with well-established brands, these base movements are often brought in to serve as the basis for a more custom end-product (for example, the Omega 1120, which is a tuned and decorated ETA 2892). Regardless of it’s market position, there is no denying that ETA movements are absolutely critical to the health of the Swiss watch industry as a whole.

Although Swatch once attempted to cut-off distribution of these movements to brands outside of the Swatch umbrella, anti-trust commissions quickly intervened, forcing ETA to slowly reduce it’s supply to competitors over a prolonged time-period.  As a result, companies like Sellita and Seagull have begun to fill the void, offering “generic” movements that are virtual clones of their ETA counterparts.

In this article, we’ll explore 4 of the most important and popular ETA movements used in the production of today’s mechanical wrist watches, with care taken to examine both their technical capabilities and historical contexts.

Movement Quick Comparison

Reference Winding Jewels Rate Power Hacking Day Date
ETA 2824-2 Automatic 25 28,800 bph 40h
ETA Valjoux 7750 Automatic 25 28,800 bph 44h
ETA 2892-A2 Automatic 21 28,800 bph 42h
ETA 2801-2 Handwind 17 28,800 bph 46h

ETA 2824-2: The Well Rounded Workhorse

Size: D 25.6 mm, H 4.6 mm
Specs: Automatic, 25 Jewel, 28,800 A/h, 40h Power Reserve
Special Features: Incabloc Shock Protection, Etachron Regulator, Stone Lever Escapement, Quickset Date
Clones: Sellita SW200, STP1-11, Valanvron VAL-24, Hangzhou 6300, Seafull ST2130

ETA Caliber 2824-2By far the most common ETA movement, you can find the 2824-2 in everything from a Hamilton Khaki ($426.99) to the much more expensive Tudor Pelagos ($4,250.00).

Based on the Eterna 1427 designed back in 1961, the 2824 is used in thousands of mechanical watch references. The most recent incarnation (the 2824-2) has been in continuous production since 1982.

This automatic three-handed 25-jewel movement is available in four different grades: Standard, Elabore, Top, and Chronometer. Sharing the same general architecture, the four grades differ in their overall accuracy due to the usage of higher quality parts and multiple adjustment points throughout the movement.

Why do watch companies love the 2824? Simple: it’s accurate, durable, and relatively inexpensive, while maintaining the core functionality needed by the majority of three-handed watches.


Some ETA 2824-2 Favorites

ETA Valjoux 7750: The Classic Chronograph

Size: D 30.0 mm, H 7.9 mm
Specs: Automatic, 25 Jewel, 28,800 A/h, 44h Power Reserve
Special Features: Chronograph, Incablock Shock Protection, Nivaflex Mainspring, Glucydur Balance Wheel, Stone Lever Escapement, Quickset Date
Clones: Sellita SW500, Shanghai 3LZF2

ETA Valjoux Caliber 7750The 7750 is one of the world’s most prolific chronograph movements. Itself the subject of several evolutions, the 7750 is based on the Valjoux 7733 (which became part of ETA via merger), and was also based on the Venus 188, a company Valjoux purchased in 1966.

Released five years after Zenith developed the first automatic chronograph with the El Primero, this movement’s initial success was stymied by the quartz revolution, lingering on shelves for almost 10 years until automatic watches regained popularity in the mid-80’s.

The 7750 is extremely popular because it serves as a perfect substructure for more complex chronograph designs. There are a dozen variants of the 7750, combining the base chronograph functionality with everything from GMT to moon-phase complications. It’s accurate as well, with many decorated examples achieving full COSC certification.

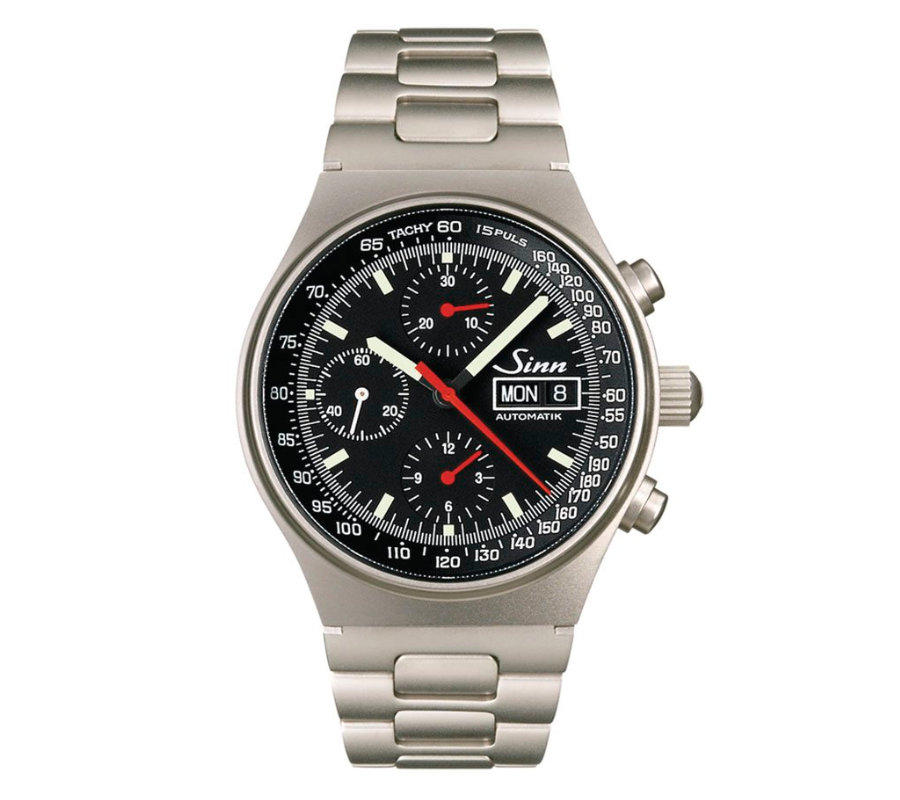

Some ETA 7750 Favorites

ETA 2892-A2: The Upper Class Automatic

Size: D 25.6 mm, H 3.6 mm
Specs: Automatic, 21 Jewel, 42h Power Reserve
Special Features: Incabloc Shock Protection, Etachron Regulator, Stone Lever Escapement, Quickset Date
Clones: Soprod A10, Valanvron VAL-92, Sea-Gull 1812

ETA 2892 A2The 2892-A2 was designed as a premium alternative to the venerable 2824. Both the 2824 and 2892 are similar in design, with the 2892 being about 30% thinner.

So what’s the difference? The 2892 is widely considered a more efficient movement, fitted with top-quality components and better finishing. With that, it generally achieves better accuracy than the 2824. This movement is widely used by brands such as Omega, Breitling, and IWC as the engine for their high-end time-pieces.

Still, many luxury watch brands have been criticized for using ETA movements in high-end pieces. Companies like Tudor and Panerai are well known for charging astronomical prices for their ETA-powered watches, the price you pay for prestige and heritage, I suppose.


Some ETA 2892-A2 Favorites

ETA 2801-2: The Handwinder

Size: D 25.6 mm, H 3.35 mm
Specs: Manual Wind, 17 Jewel, 46h Power Reserve
Special Features: Incabloc Shock Protection, Stone Lever Escapement, Yoke Winding System
Clones: None

ETA 2804-2Although not nearly as popular as the automatic movements developed by ETA, the 2801 fills a particular niche. Lacking a rotor assembly and date, this 17-jewel movement is significantly thinner than it’s automatic counterparts. This gives it an advantage for manufactures looking to create an exceptionally thin profile, and works well in many dress watches.

Variants of the 2801 can also be found in some notable tool watches, particularly the 2804-2 – which is basically the 2801 with the addition of a date complication. You can find this movement in the Hamiliton Khaki Field line – a watch we’ve previously reviewed.


Some ETA 2801 Favorites

Wrapping Up

Despite being a massive corporate conglomerate of anti-competitive capitalists, ETA is not evil. Through dozens of acquisitions and mergers, ETA has consolidated and streamlined 150 years of watchmaking innovation. Today, 75% of the Swiss watch-making industry is dependent on these ubiquitous engines.

As Swatch begins limiting the distribution of it’s movements to companies outside the Swatch umbrella, we will start to see Boutique watch brands incorporating movements from Sellita and Miyota instead. In fact, it’s already started to happen. Whether this will have a large impact on the quality and longevity of these lesser known brands has yet to be seen.

Either way, ETA wins. And as ETA movements begin to become more limited in production, the value of watches containing this movement will begin to command a premium.

So what side do you fall on: Evil Swatch-Owned Cartel or Cornerstone of the Luxury Watch Industry?


Get The Dispatch

If you enjoyed this post, drop us your email address and we'll keep you up to date with the latest on tool watches, gear and style.




About the Author

Mike Johnson

Mike Johnson is the managing editor and primary contributor to 60clicks.com. Born into a military family as the son of US Navy pilot, Mike spent many of his formative years studying Computer Science and User Experience Design. When not obsessing over watches, Mike spends time hiking, traveling, and spending time with his family in Phoenix, Arizona.

Comments 17

  1. Jose

    Hi there,
    Thank you for the information it really is educational
    But I still have a question is:

    ETA 2892-A2 patent has expired?
    If anyone tries to clone the exact movement an only change its name and logo they will not get into trouble?

    1. Post
      Author
      Mike Johnson

      Hey Jose — Patent protection on some of these movements is dubious at best… many of the original designs were created by international companies that are long defunct. On top of that, small components of the original design can be modified to get around patent protection. In other words, the patent is practically indefensible.

      Clones of the 2892 already exist — but since the 2892 is a high-end movement (with high-end finishing), placing these clones in high-end watches doesn’t really make sense… why not just use a 2824 clone instead?

      1. Oscar Salonius

        2892 is significantly smaller than 2824, so that’s a common reason for using it instead of 2824. Also worth pointing out that Soprod A10 is not a clone of 2892 – they’re mechanically totally different watches (Soprod A10 looks like a Seiko 4L25 though, probably Soprod bought the license and/or tooling from Seiko). However, Soprod A10 intentionally is designed to have the exact same dimensions as the ETA 2892 in order to give companies the option of replacing the ETA with the Soprod as availability of the ETA movements gets worse.

        1. Post
          Author
  2. Francisco Moreno

    Hi Mike,

    Great article. Thank you very much for the insights.

    I am a hobbyist. I would like to learn about watches and how to repair them. I looking for some advice about getting started.

    -> Would you like to answer me some questions?

    I found about the \”Time Zone Watch School\”, 75$ . As a newbie, I should start off with low-cost tools. In other words, going for the \”Pro\” tool brands doesn\’t add up for me at this stage.

    Any piece of advice to this regard?

  3. ANZ

    hello all, can I know which is the best eta chronograph movement other than 7750. Is there any mechanical movement with 4 eyes

  4. felipe

    dear
    Is the ETA 2836 movement compatible with an exact replica of the Rolex submariner 16610 of the same measures as the original?
    There is no problem installing it, even if the watch is only date?

    greetings

    Felipe

    1. Post
      Author
      Mike Johnson

      I’m not sure, you’d have to consult a watchmaker. If the dimensions of the movement are the same I don’t see why it wouldn’t work, otherwise I’m sure there is a shim that would allow it to fit. The better question is, why would you want to put an ETA in a Rolex?

  5. felipe

    or better to install a Eta 2824-2 movement on a Rolex submariner 161610?
    by the measurements of the movement could the installation be possible?

    Thank you

    Felipe

  6. DEAN A BAKER

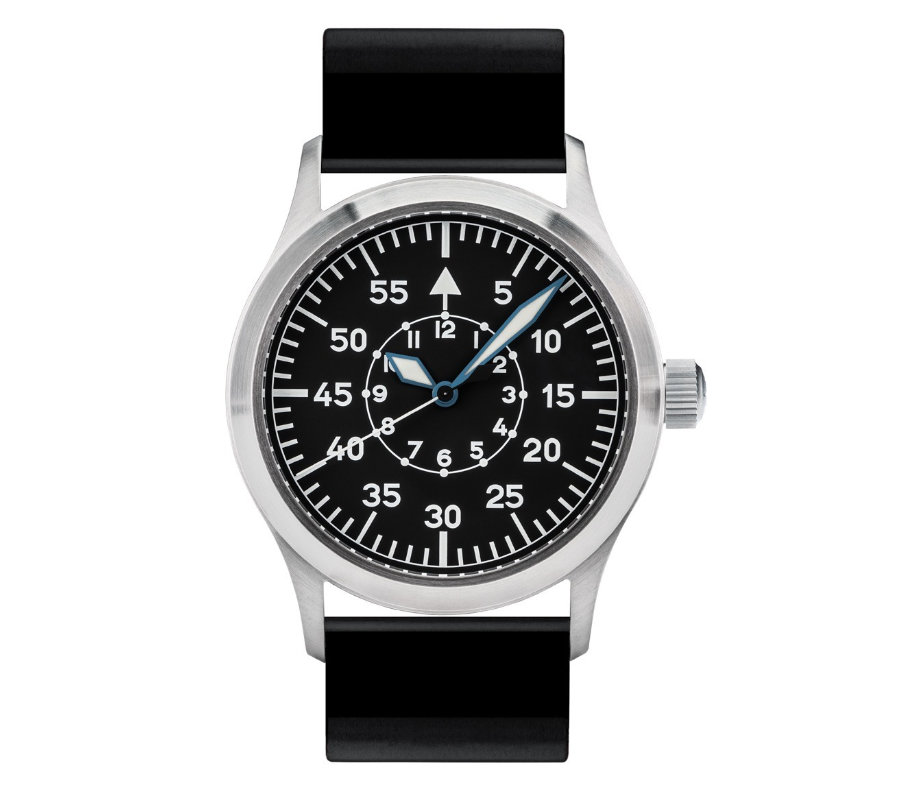

    Hello,
    I recently acquired a Stowa Flieger with an ETA 2804 movement. I noticed that the movement has a regulator “tail” adjuster, rather than the screw adjuster pictured on your site. Was there a point where ETA switched over to such an adjuster, or is it an indication of a different grade of movement?
    Thank you,
    Dean
